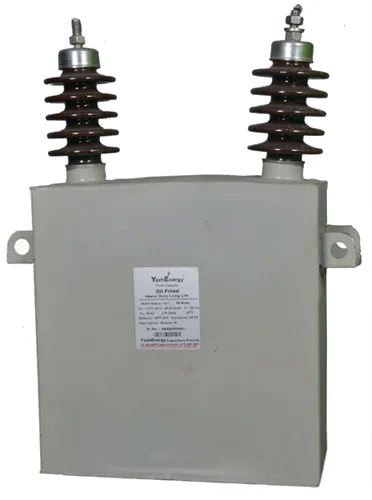

High Voltage Capacitors Manufacturer

High voltage capacitor is an essential component in various applications where energy capacity, voltage regulation, and power factor correction are required. These capacitors are specially designed to deal with high voltages and current.

At their core, high voltage capacitors are electrical devices that store energy in an electric field between two conductive plates isolated by an insulating material. The amount of energy that a capacitor can store depends on its capacitance, which is measured in farads (F). High voltage capacitors normally have a huge capacitance value and are fit for putting a significant amount of energy.

Each Capacitor Unit Consists Of Number Of Elements In Series / Parallel Combination With Internal Fuses. Each Element Is Wound With High Quality BOPP Film As Dielectric And High Purity Aluminum Foil As Electrode. Extended Foil Construction Is Adopted To Enhance The Life Of Capacitors. This Capacitor Is Impregnated With NON-PCB, NON-TOXIC Biodegradable, Eco Well disposed Oil Under Vacuum Which enhances Life Of Capacitor. Such Capacitors Go through Thorough Testing Prior to Painting And Dispatch To Concern Clients.

During The Process Of Repairs Of These Capacitors The Capacitors Are Opened First. Then The Entire Elements Are Checked Visually And Those Elements, Fuse Of Which Blown, Are Removed From The Stack.

These Faulty Elements Are Replaced With Good Elements And The Capacitor Is Put For Initial Testing. During This Testing If Any Other Element Is Faulty It Also Blows Off. Then The Same Is Also Replaced With A Good One. After This The Capacitor Is Put For Final Testing And After Passing The Testing The Capacitor Is Sealed, Painted And Dispatched To Concern Customers.
